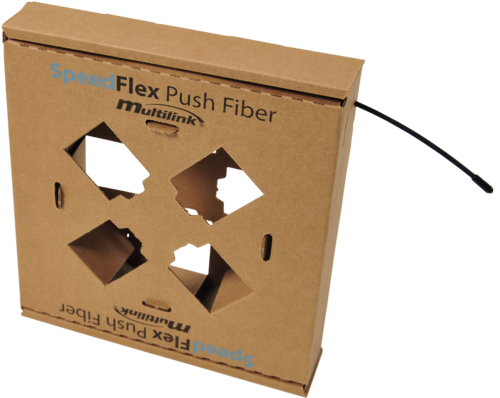

Multilink’s SpeedFlex Push Fiber is a strong but flexible fiber cable designed to be installed in rigid and flexible conduit, along with the ability to be stapled directly to the wall. With the ability to have up to 12 fibers inside, Multilink’s SpeedFlex Push Fiber is unique to the push/pull fiber industry. The 900µm fiber is bend-insensitive fiber and properly color coded to EIA/TIA standards. SpeedFlex comes in a 100 ft. payout box OR 1000 ft. contractor box. SpeedFlex comes with printed measurements so you always know how much you have left. Also available with a factory terminated connector upon request. It is pushable up to 1000 ft.
| General Specifications | |
| Jacket Rating | UL/CE Listed, UL94 |
| Fiber Buffer Color | Blue/Orange |
| Product | Push Fiber |
| Outer Jacket Color | Black |
| Nominal Outer Diameter | 3.6mm |
| Bend Radius | 10mm |
| Jacket Bend Radius | 30mm |
| Application |
General Building Applications Indoor Horizontal and Vertical |
| Jacket Type | UV Stabilized Rigid PVC |
| Packaging/Length | 100 Ft. Payout Box |
| Fiber Count | 2 |
| General Specifications | |
| Environment | Indoor/Outdoor |
| Installation Temperature Range | -30°C to 75°C |
| Fiber Specifications | |
| Fiber Type | Singlemode 9/125um Tight Buffered Bend Insensitive G657D, G657 A1 |
| Fiber Category | Singlemode (OS2) |
| Environmental Specifications | |
| Storage Temperature Range | -40°C to 70°C (-40°F to 158°F) |
| Operating Temperature | -40°C to +70°C |
| Safety Standard Specifications | |
| Safety Standard |
GR-20 Compliant Designed to GR-3155 |
