Modular Vault

801-029-20

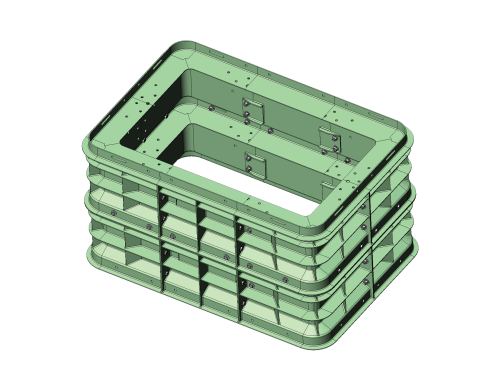

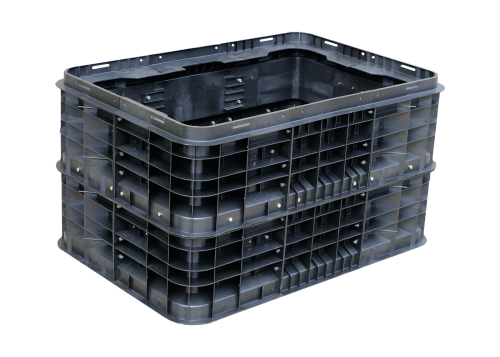

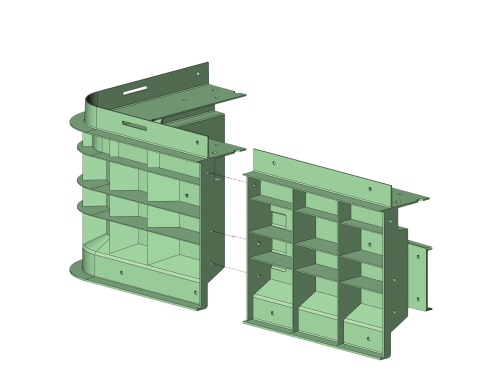

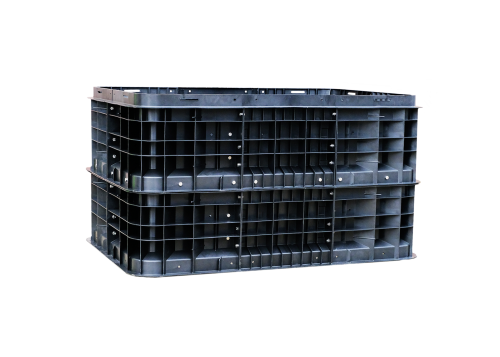

This durable, modular vault has spacious room to house your below-grade equipment. The Multilink Modular Vault is designed with flexibility in mind. Constructed to suit the needs of the location, this Light Duty Rated Vault is expandable by width, length and depth. An optional diamond plate steel lid can be ordered to secure the vault. Multilink can also design the diamond plate to accommodate your specific hole pattern of your cabinet to mount the vault.

801-

Physical Specifications
Dimensions

24"W x 24"L x 12"D = 1 stage

24"W x 36"L x 24"D = 2 stages

24"W x 36"L x 12"D = 1 stage

24"W x 24"L x 24"D = 2 stages

36"W x 36"L x 12"D = 1 stage

36"W x 36"L x 24"D = 2 stages

Color Black
Material UV Stabilized Plastic
Safety Standard Specifications
Safety Standard ANSI - Light Duty Rated, Vertical Load 3,000 lbs
440.366.6966
File Name File Size
801-029-20Flyer.pdf 660.81KB
801-029-20Spec.pdf 896.36KB
BABAA_Letter.pdf 266.8kB
